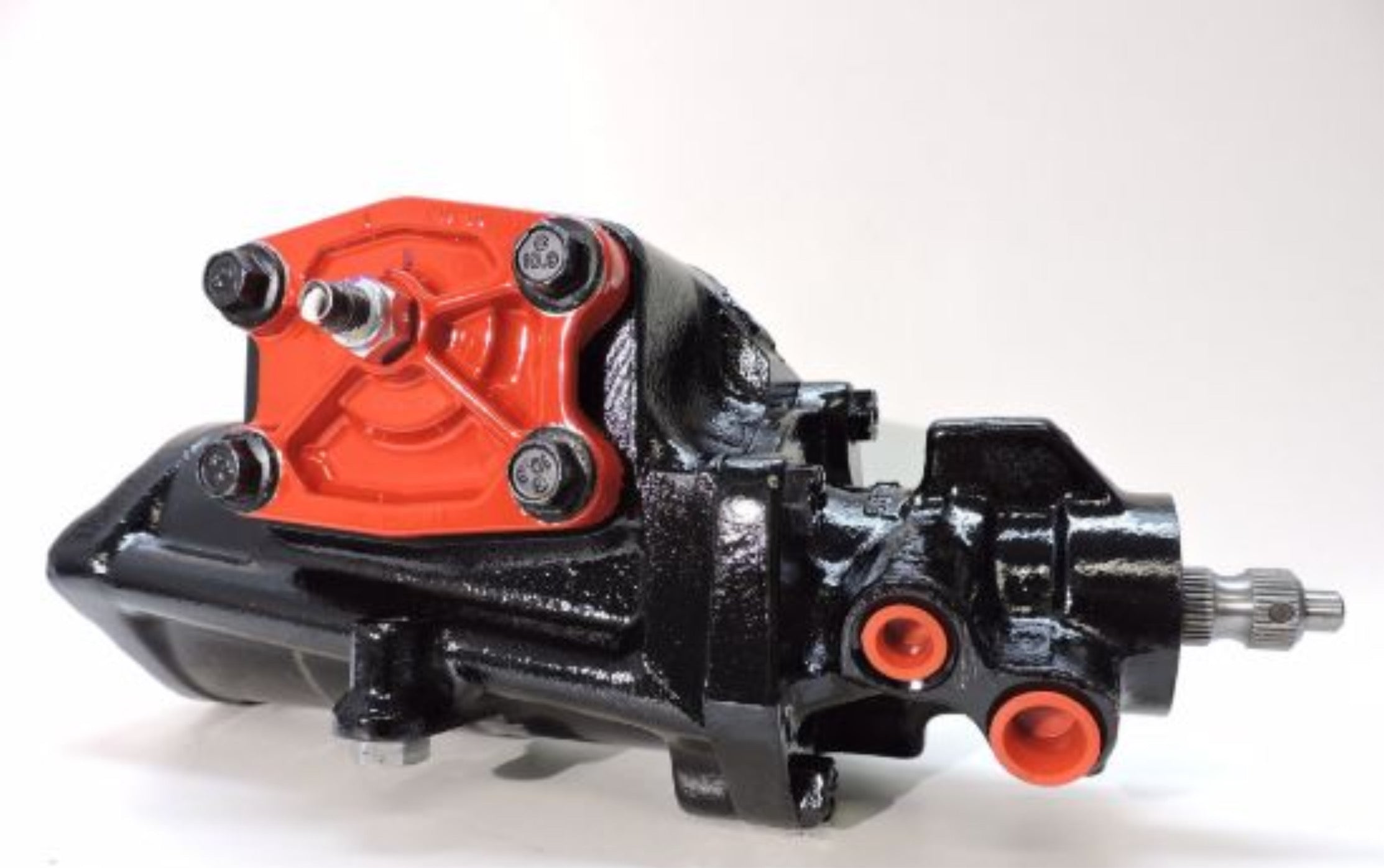

RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans
RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans

RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans

Need Help? (Use our chat for the fastest response)

⚠️ Prop 65WARNING: Cancer & Reproductive Harm - P65Warnings

$416.00
$416.00
Core Charge
Add pre-paid core return label
Subtotal: $416.00
RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans

RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans

$416.00
RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans
RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans

RedHead Steering Gearbox 32 Spline 1999-2004 F250, F350, F450, F550 and 2000-2005 Excursion or 1999-2004 Vans

$416.00
Description

Do you have Steering wheel play? Get this remanufactured steering gear box and make your truck turn like new again!

This will also add the following products to your cart:
  • $250 Conditional Core Charge – This product requires a deposit that will be appropriately refunded upon receipt of your original core part.

Part Number: 2764 (4 Turns). Product Fits: 1999-2004 Ford F-250 to F-550 pickup trucks, 2000-2005 Excursion, or 1999-2004 Vans Please review our information regarding our Core Returns, Bleeding Info , And Warranty NOTE:

  • Be sure to do a spline peak count of your output or sector shaft, which indirectly connects to the tires, you should have a total of 32 splines. You have 8 spline peaks between each master spline. There's 4 master splines, so 8 times 4 = 32 splines) If you count 36 Spline then you need Part #2764BS
  • Flushing Steering/brake hydroboost system is required if not done will void warranty
  • Use recommended ATF for flushing and fluid replacement
  • Make sure power steering pump is in good working order or it can cause damage and void warranty
  • Check all other steering components for wear!
Weight 30.00 lb(s)
Ratio 18:1 / 4 Turns
Input Single flat with 27 splines
Output 36 Spline Sector 4 Master Spline
Fittings O-Ring
