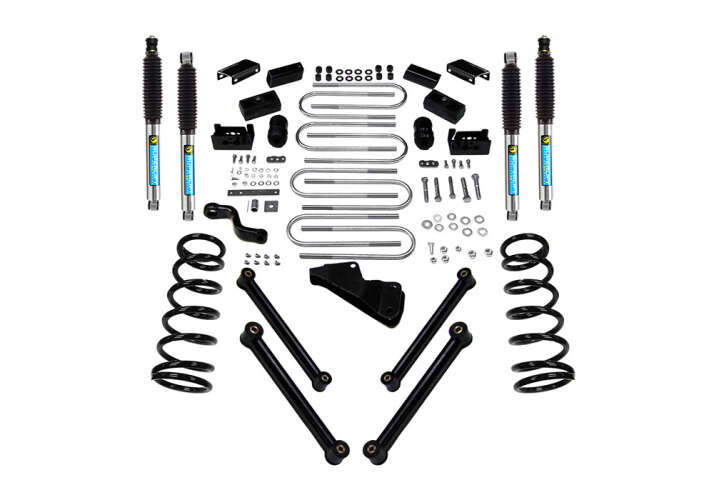

This Superlift lift kit offers a comprehensive replacement of coil spring suspension for the 2003-2005 Ram 2500 | 3500, providing a 6 inch lift height. Choose between Superlift Shocks, Bilstein 5100 Series, or Fox Performance Series 2.0 IFP Shocks to complete this kit.
Front lift is via new, pre-set coil springs for Ram 2500 |3500. A drop pitman arm, for steering correction, works in concert with the track bar relocation bracket to ensure proper phasing. New Upper | Lower front axle-to-frame link arms restore factory alignment specifications. Front and rear suspension compression travel bump-stops are provided.
For rear lift, lift blocks are used it negate the factory front to rear nose-down rake. The lift kit is available with Superlift Shocks OR Bilstein 5100 Series Shocks OR Fox® Performance series 2.0 IFP Shocks.
Features | benefits:
- Coil springs are pre-set to minimize settling
- Track bar relocation bracket prevents the steering wheel kick and stud bind
- Fabricated Brackets constructed from .25” thick plate steel
- Heavy-duty replacement upper and lower links maintain desired caster angle and feature greaseable Urethane Bushings
- Front | Rear Compression travel stop brackets eliminate over-compression
- Drop Pitman arm relieves drag link angle to prevent bump steer | wandering
- Available in Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox Performance Series 2.0 IFP Shocks (Front and Rear)
- Aligns to OEM specifications
- Backed by our Limited Lifetime Warranty
NOTES:
- If equipped with a two-piece driveshaft, also order carrier bearing drop bracket, Part # 4668
